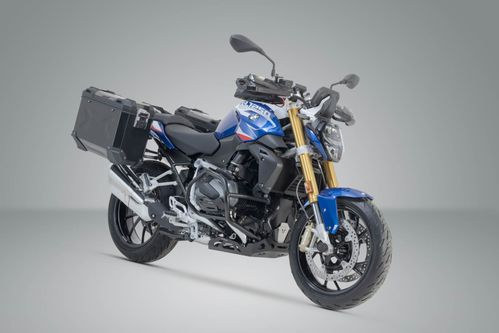

Robust SW-MOTECH TRAX ADV aluminum case system with 37 l side cases for BMW R 1200/1250 R/RS. Waterproof, dustproof and ideal for any route. Includes removable EVO side carrier, adapter kit and anti-theft protection. Perfect for adventures and travel.
TRAX ADV aluminium case system Black. 37/37 l. BMW R 1200 R/RS, R 1250 R/RS.
black
KFT.07.573.70000/B
$1,590.00
silver
KFT.07.573.70000/S
$1,590.00
Product Information
Service
Mounting instructions
Installation and/or maintenance of this product require good technical understanding!
Product Specifications
Simple and secure payment
Product Description

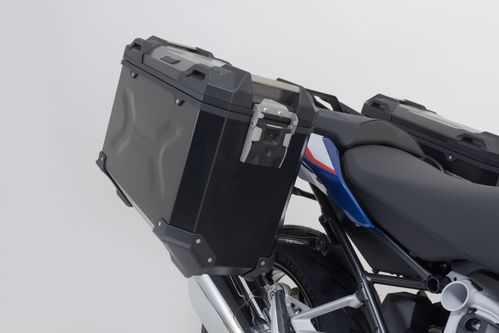

TRAX ADV Aluminum case system
TEST WINNER in the magazine MOTORRAD issue 05/2020. Test result: VERY GOOD
Durable TRAX ADV aluminum cases feel at home on any stretch of road: embossed patterns add stability to the 1.5 millimeter-thick, welded aluminum wall material. A completely removable lid with carrying handles made of anodized aluminum and quick release fasteners makes loading and unloading of motorcycle luggage easier; the beveled side edge provides high ground clearance when cornering. With this complete solution, you have all the components you need to travel with TRAX: two waterproof TRAX ADV side cases, two detachable SW-MOTECH side carriers, adapter kit, lock set, lid limiter and anti-theft protection at an attractive price.
The bike-specific carrier and the size of the cases are perfectly matched to the rear shape and exhaust system of the motorcycle. A motorcycle case without compromise: the development of the TRAX ADV focused on stability and impermeability against dust and water as well as simple handling. Whether on an off-road adventure, road trip or short haul, the premium aluminum case with a wall thickness of 1.5 millimeters will come out on top in any challenge.

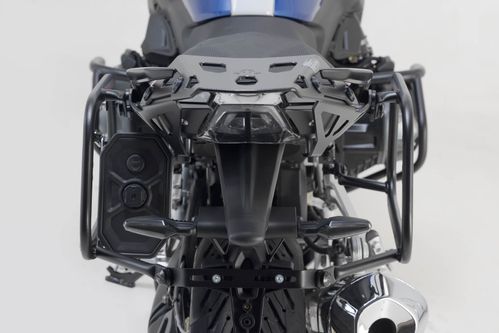

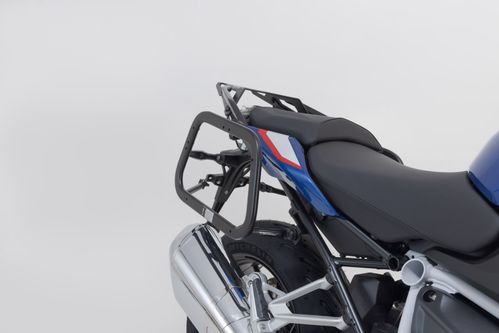

EVO Side carrier
Detachable carrier for use with almost all common case systems
Attachment and removal within seconds with quick-release fasteners at inconspicuous attachment points
The SW-MOTECH case adapter (available separately) makes it suitable for TRAX, AERO, Givi/Kappa, Krauser, Hepco & Becker, Shad cases
Made of oval round tube close to the vehicle
High functionality and stability
Details
Material: Steel
Surface: powder coated
Color: black
Total Weight: appr. 3,7 kg / appr. 8.2 lb
Width built onto motorcycle: 49,0 cm / 19.3 in
Note
We recommend QLS.00.046.10100/B anti-theft protection
Please note that an adapter kit corresponding to the attached case is required! (Listed under accessories)
Adapter kit for EVO side carriers
Adapter kit for attaching TRAX ADV/ION/EVO or NANUK side cases to SW-MOTECH EVO side carriers
Mounted on to the existing holes of the SW-MOTECH EVO side carrier
For left and right sides
Details
Color: silver
Total Weight: appr. 0,3 kg / appr. 0.8 lb
TRAX ADV M Aluminium case
Included in delivery
1 x TRAX ADV M Aluminium case, 37,00 l, left, black
1 x TRAX ADV M Aluminium case, 37,00 l, right, black
2 x EVO Side carrier
2 x Adapter kit for EVO side carriers
1 x TRAX lock set with EVO anti-theft device
1 x Multi-tool key chain attachment
4 x Lid limiter
2 x Storage bag
Mounting instructions
Mounting material
Attribute
Value
Brand
SW-MOTECH
Variant name
GTIN
Material
Color
Purpose
Other
Assembly required
Yes
Condition
New
Length
-
Height
-
Width
-
Depth
-
Model for the right side of the motorcycle
Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
A lock set with 6 identical locks is available as an option and is not included in delivery
Details
Material: Aluminum
Surface: powder coated
Color: black
Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in
Total Weight: appr. 5,1 kg / appr. 11.2 lb
Total Volume: 37,0 l
Note
Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Required for mounting
Side carrier, adapter kit, TRAX lock set
TRAX ADV M Aluminium case
Model for the left side of the motorcycle
Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
A lock set with 6 identical locks is available as an option and is not included in delivery
Details
Material: Aluminum
Surface: powder coated
Color: black
Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in
Total Weight: appr. 5,1 kg / appr. 11.2 lb
Total Volume: 37,0 l
Note
Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Required for mounting
Side carrier, adapter kit, TRAX lock set
TRAX lock set with EVO anti-theft device
Nine matching locks
With anti-theft device for the EVO side carrier
Compatible with side cases and top cases of the TRAX ADV and TRAX ION series as well as the TRAX Toolbox
One key for all locks
Details
Color: black
Total Weight: appr. 0,5 kg / appr. 1.0 lb
Multi-tool key chain attachment
Multitool as practical key chain
Quick-release fastener opener for EVO and PRO side carriers
Hex key (14 mm) - ideal for many motorcycle mirrors
Hex keys in four additional sizes (8, 10, 12, 13 mm)
