EVO High beam kit
The highly concentrated light of the EVO high beams has a particularly wide range. This provides optimal lighting for the rider's view and ensures safety during on- or off-road riding. SW-MOTECH sought out a reliable partner for the development of the new EVO fog lights and relied on the expertise of a long-standing top manufacturer from the automotive sector. Development is focused on meeting the strictest quality standards while also maintaining a compact shape: the EVO high beams are resistant to water and dust, with an IP69 protective class rating. Powerful LEDs provide the best view, while wear-resistant housings ensure long life.

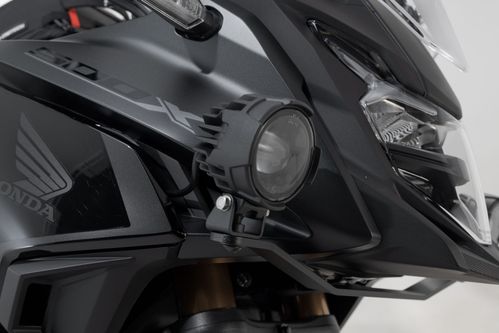

These bike-specific mounts provide optimal positioning of the EVO lights, because they are developed exclusively for each motorcycle model. The sturdy elements made of powder-coated steel are screwed on to existing attachment points. They guarantee secure hold for the EVO lights, even when riding off-road. Please refer to the mounting instructions to determine if headlamps can be mounted standing, hanging and/or sideways on your motorcycle model.
Light mount
- Compatible with SW-MOTECH lights
- Simple mounting on available attachment points
- Bike-specific development ensures that lights fit perfectly
- Corrosion protection thanks to the high-quality powder coating
- Material: Steel
- Surface: powder coated
- Color: black
- Total Weight: appr. 0,7 kg / appr. 1.6 lb

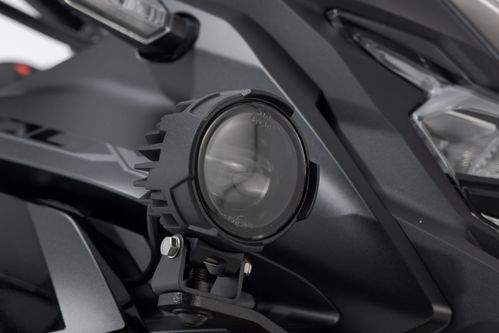

EVO High beams
- Trouble- and maintenance-free operation due to almost wear-free LED, considerably reduced energy consumption
- Power output: 12 W each light
- Luminous flux: 800 LM each light
- ECE test mark: ECE R113 Rev.2
- Highly concentrated beam with long-distance range
- Compact size with a diameter of 7.1cm
- Water- and dustproof (safety class: IP69)
- Voltage: 12 V. Cable harness for easy connection to the motorcycle battery included in delivery, no change to motorcycle electric required
- Splash-protected, blue glowing handlebar switch for comfortable operation (Protection class: IPX4)
- Mounting points on all four sides
- Installation on headlight clamps for crash bar (Ø 22, 26, 27, 28 mm) or bike-specific brackets
- Material: Aluminum
- Surface: powder coated
- Color: black
- Total Weight: appr. 1,3 kg / appr. 2.9 lb
- Note that due to the curvature of the reflector the "TOP" mark must always be at the top.
- Light clamps for crash bar and bike-specific mounts are available separately.
- Please observe the legal regulations applicable in your country for the operation and installation of high beams
- Crash bar clamps or bike-specific light mount
Details
- Color: black
- Total Weight: appr. 2,1 kg / appr. 4.7 lb
Note
- Only mountable with SW-MOTECH logo up due to reflector curvature
- Please observe the legal regulations applicable in your country for the operation and installation of high beams.
